Greca: Polycarbonate Panels
Glued slabs in alveolar PC
GRECA are polycarbonate multiwall corrugated sheets with an honeycomb structure and a cover width of 1000 mm. Sheets have been developed for lateral overlaps to most insulated panels and / or corrugated metal sheets available on the market. Designed for the installation of skylights both in single and multiple applications, thanks to the possibility of longitudinal and / or lateral overlapping, they are also available in thermocurved version, with bending radius of 3500 mm or 6000 mm.
The side wing has a multiwall structure to reduce the problem of condensation. GRECA sheets have a good light transmission and, thanks to their coextruded UV protection, they guarantee a high degree of protection against UV rays, yellowing and hail damage.
The corrugated shape provides good resistance to external loads (snow and / or wind), while the typical polycarbonate features provide excellent resistance to accidental shocks and temperature leaps.
Available thickness: 8mm, 10mm, 12mm, 16mm, 20mm
The system is completed by a range of accessories that complete the installation.
Installation guide
Greca articles

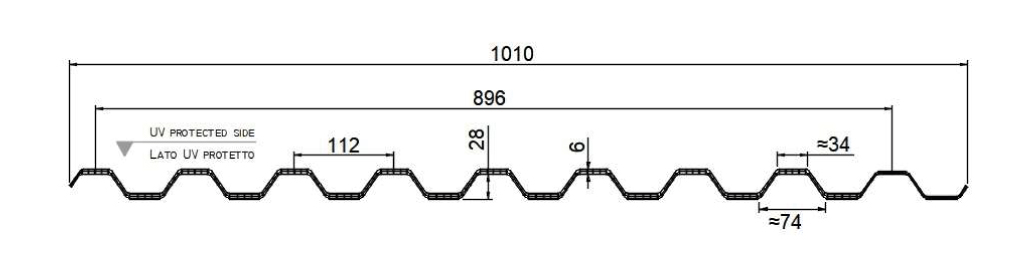

| GRECA 112/28 6 mm | |
|---|---|
| Thickness | 6,0 mm |
| Overall width | 1010 mm |
| Cover width | 896 mm |
| Pitch | 112 mm |
| Depth | 28 mm |
| Length | 7000 mm (Maximum recommended length) |
All dimensions are subject to production tolerances

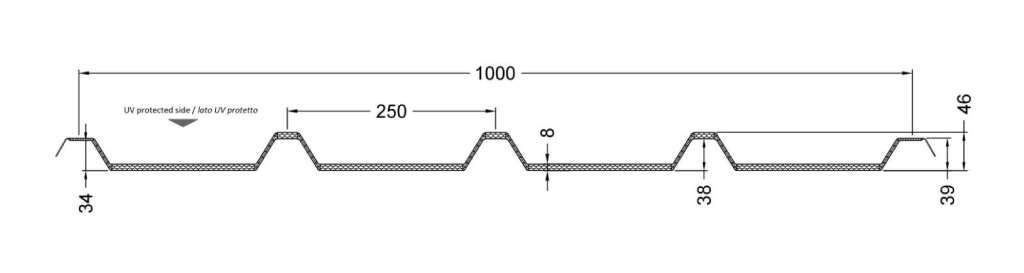

| GRECA 250/40 8 mm | |
|---|---|
| Thickness | 8,0 mm |
| Cover width | 1000 mm |
| Pitch | 250 mm |
| Depth (Middle corrugations) | 46 mm |
| Depth (Side corrugations) | 39 mm |
| Length | 7000 mm (Maximum recommended length) |
All dimensions are subject to production tolerances
| GRECA 250/40 10 mm | |
|---|---|
| Thickness | 10 mm |
| Cover width | 1000 mm |
| Pitch | 250 mm |
| Depth (Middle corrugations) | 48 mm |
| Depth (Side corrugations) | 39 mm |
| Length | 7000 mm (Maximum recommended length) |
All dimensions are subject to production tolerances
| GRECA 250/40 12 mm | |
|---|---|
| Thickness | 12,0 mm |
| Cover width | 1000 mm |
| Pitch | 250 mm |
| Depth (Middle corrugations) | 50 mm |
| Depth (Side corrugations) | 39 mm |
| Length | 7000 mm (Maximum recommended length) |
All dimensions are subject to production tolerances

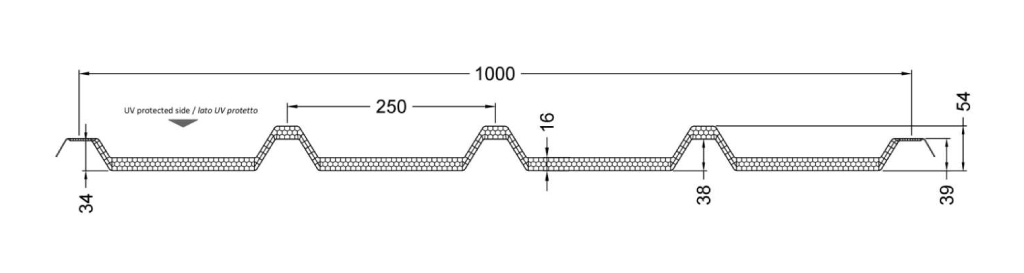

| GRECA 250/40 16 mm | |
|---|---|
| Thickness | 16,0 mm |
| Cover width | 1000 mm |
| Pitch | 250 mm |
| Depth (Middle corrugations) | 54 mm |
| Depth (Side corrugations) | 39 mm |
| Length | 7000 mm (Maximum recommended length) |
All dimensions are subject to production tolerances

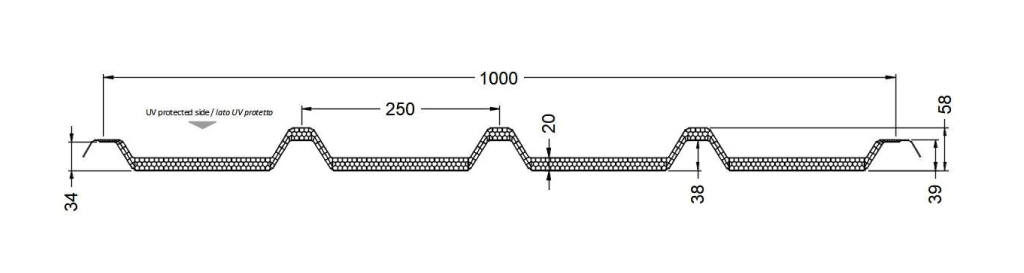

| GRECA 250/40 20 mm | |
|---|---|
| Thickness | 20 mm |
| Cover width | 1000 mm |
| Pitch | 250 mm |
| Depth (Middle corrugations) | 58 mm |
| Depth (Side corrugations) | 39 mm |
| Length | 7000 mm (Maximum recommended length) |
All dimensions are subject to production tolerances

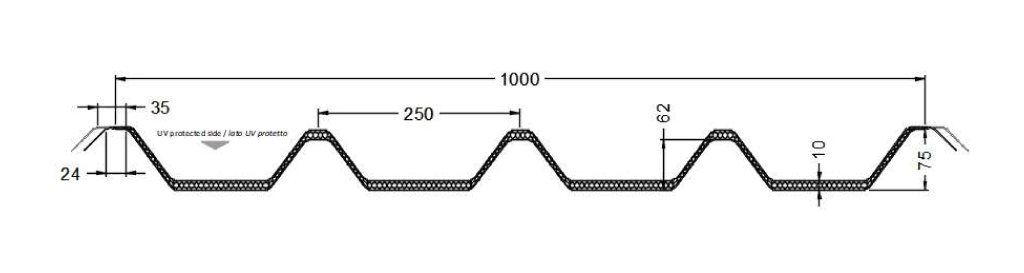

| GRECA 250/75 10 mm | |
|---|---|
| Thickness | 10,0 mm |
| Cover width | 1000 mm |
| Pitch | 250 mm |
| Depth (Middle corrugations) | 62 mm |
| Depth (Side corrugations) | 75 mm |
| Length | 7000 mm (Maximum recommended length) |
All dimensions are subject to production tolerances
| GRECA 250/75 12 mm | |
|---|---|
| Thickness | 12,0 mm |
| Cover width | 1000 mm |
| Pitch | 250 mm |
| Depth (Middle corrugations) | 62 mm |
| Depth (Side corrugations) | 75 mm |
| Length | 7000 mm (Maximum recommended length) |
All dimensions are subject to production tolerances

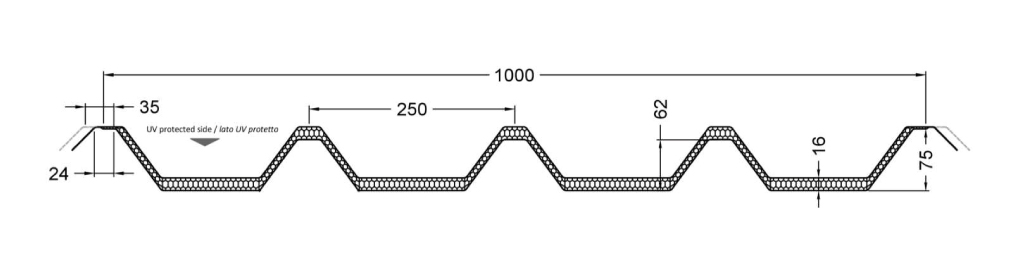

| GRECA 250/75 16 mm | |
|---|---|
| Thickness | 16 mm |
| Cover width | 1000 mm |
| Pitch | 250 mm |
| Depth (Middle corrugations) | 62 mm |
| Depth (Side corrugations) | 75 mm |
| Length | 7000 mm (Maximum recommended length) |
All dimensions are subject to production tolerances

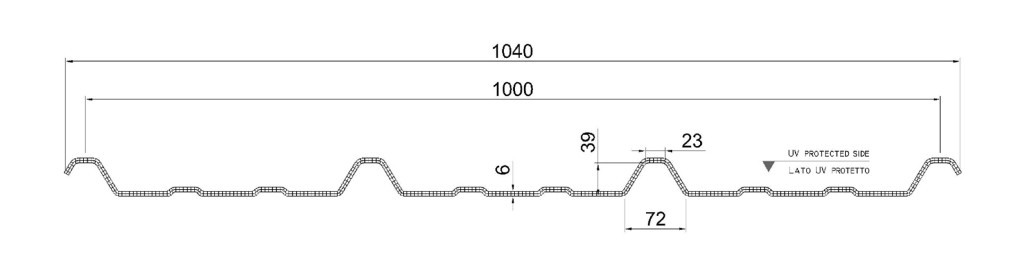

| GRECA 333/39 6 mm | |
|---|---|
| Thickness | 6,0 mm |
| Overall width | 1040 mm |
| Cover width | 1000 mm |
| Pitch | 333 mm |
| Depth | 39 mm |
| Length | 7000 mm (Maximum recommended length) |
All dimensions are subject to production tolerances

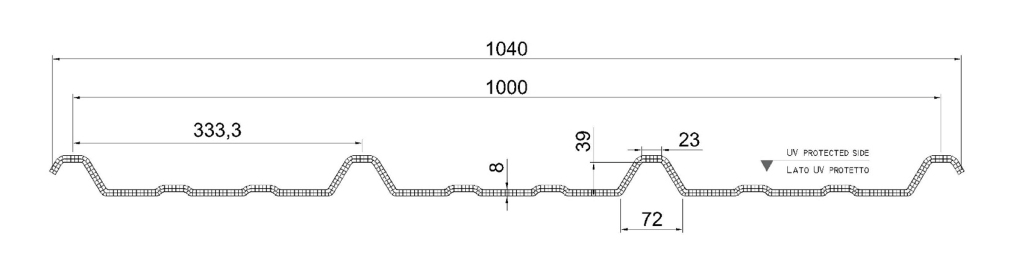

| GRECA 333/39 8 mm | |
|---|---|
| Thickness | 8,0 mm |
| Overall width | 1040 mm |
| Cover width | 1000 mm |
| Pitch | 333 mm |
| Depth | 39 mm |
| Length | 7000 mm (Maximum recommended length) |
All dimensions are subject to production tolerances
